MCCB Explained: Why the 63 Amp Moulded Case Circuit Breaker Is the Backbone of Every Safe Electrical Panel in India
Electrical protection is the invisible backbone of every safe installation. Whether it is a factory floor, a commercial building, or a residential complex, the circuit breakers installed in the distribution system determine whether an overload or short circuit results in a controlled, safe disconnect or in a catastrophic failure. Moulded case circuit breakers, commonly known as MCCBs, are the workhorses of medium-scale electrical protection across India. Lauritz Knudsen Smartshop offers a comprehensive range of MCCBs, including the widely specified 63 amp MCCB, that combine proven engineering with the reliability that Indian industry demands.
What Is a Moulded Case Circuit Breaker
A moulded case circuit breaker is a protective switching device housed in a moulded insulating case. It automatically interrupts electrical circuits during overload or short circuit conditions, protecting both wiring and connected equipment from damage caused by excessive current.
Thermal Magnetic Trip Mechanism
The standard moulded case circuit breaker uses a bi-metallic strip for thermal overload detection and an electromagnetic release for short circuit protection. The bi-metallic strip bends under sustained overload current, tripping the breaker after a time delay. The electromagnetic release responds instantaneously to short circuit currents, disconnecting the circuit within milliseconds to prevent damage.
Adjustable Trip Settings
Many MCCBs from Lauritz Knudsen SmartShop offer adjustable overcurrent and short circuit trip settings. This flexibility allows the same breaker to be configured for different cable sizes, load characteristics, and protection coordination requirements within a distribution system, reducing the number of different MCCB variants that need to be stocked.
Breaking Capacity
Breaking capacity is one of the most critical specifications of any moulded case circuit breaker. It defines the maximum fault current the breaker can safely interrupt without damage to itself or the surrounding installation. Lauritz Knudsen SmartShop's MCCB range covers breaking capacities from standard to high values suited to every type of installation from domestic to heavy industrial.
Why the 63 Amp MCCB Is Widely Specified
The 63 amp MCCB is among the most frequently specified ratings across Indian commercial, industrial, and residential electrical installations. At this current rating, the MCCB provides protection for feeder circuits, sub-main cables, and equipment connections that exceed the capacity of miniature circuit breakers but do not require the higher ratings of larger MCCB frames.
Applications of the 63 Amp MCCB
A 63 amp MCCB is commonly used to protect feeder circuits in distribution boards supplying multiple sub-circuits, as incomer protection for small distribution panels, for motor circuits of moderate power rating, for large air conditioning units and commercial kitchen equipment, and as an isolating and protection device for critical loads in commercial buildings.

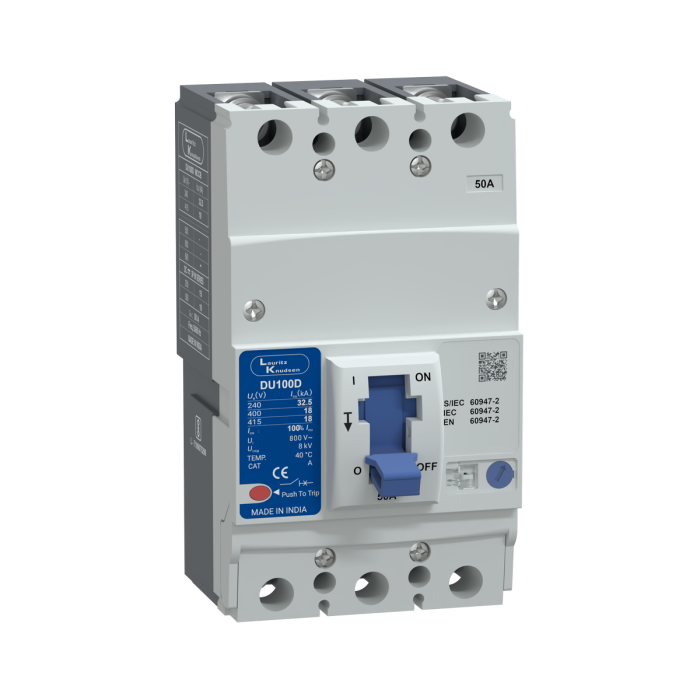

DU Series 63 Amp MCCB From Lauritz Knudsen SmartShop
The DU Series from Lauritz Knudsen SmartShop represents the new generation of MCCBs designed for contemporary Indian electrical infrastructure. The 63 amp MCCB in the DU Series offers a state-of-the-art design with contemporary user-friendly features, compact dimensions, ergonomic construction, and compliance with IS/IEC 60947-2 and EN 60947-2 standards. The range is specifically designed for tropical conditions, ensuring reliable performance in the high ambient temperatures and humid environments typical of Indian installations.
dsine Series MCCB
The dsine range from Lauritz Knudsen SmartShop further advances MCCB design with state-of-the-art features including a broad spectrum of protection mechanisms. The dsine series is positioned as a next-generation product offering superior performance characteristics for modern industrial and commercial distribution systems requiring the highest levels of protection reliability.
Selecting the Right Moulded Case Circuit Breaker
Choosing the correct moulded case circuit breaker for any application requires careful evaluation of several interdependent parameters that together define the protection and performance the breaker must deliver.
. Rated current must match or exceed the continuous current of the circuit being protected, with appropriate margin for connected load diversity and future expansion requirements.
. Breaking capacity must be equal to or greater than the prospective short circuit current at the point of installation, determined by the upstream supply impedance and transformer rating.
. Number of poles must match the supply system, whether single-phase two-pole or three-phase three-pole or four-pole for systems with a neutral conductor requiring protection.
. Trip curve characteristics must be appropriate for the load type, with consideration given to whether loads have high inrush currents during starting that might cause nuisance tripping with sensitive settings.
. Available accessories including auxiliary contacts, shunt trips, under-voltage releases, and motor operators extend the functionality of the base MCCB for remote control, monitoring, and interlocking applications.
Purchasing From Lauritz Knudsen Smartshop
The Smartshop online platform from Lauritz Knudsen SmartShop provides direct access to the complete MCCB product range, including the 63 amp MCCB, with detailed technical specifications, dimensional drawings, and compatibility information for every product. The platform enables straightforward comparison between product variants and provides transparent pricing with delivery across India.
. Complete product specifications including rated current, breaking capacity, number of poles, trip characteristics, and accessory compatibility are available on every product listing.
. Technical documentation including installation manuals, test certificates, and standard compliance declarations are accessible directly through the Smartshop platform.
. Bulk order facilities and project-specific procurement support are available for contractors, panel builders, and project developers sourcing MCCBs for large installations.
Standards Compliance and Quality Assurance
Every MCCB from Lauritz Knudsen Smartshop complies with IS/IEC 60947-2 and EN 60947-2 standards. Products are manufactured and tested to confirm breaking capacity, trip accuracy, and endurance ratings before delivery to customers across India.
Type Testing Certificates
Type test certificates from accredited testing laboratories confirm that every MCCB model has been independently verified to meet the standards it claims compliance with. These certificates are available through the Smartshop platform for every product in the range.
Conclusion
The moulded case circuit breaker is an essential component of any well-engineered electrical installation. The 63 amp MCCB from Lauritz Knudsen SmartShop delivers the protection performance, standards compliance, and application flexibility that modern Indian electrical infrastructure demands. With over 70 years of electrical engineering heritage behind every product, Lauritz Knudsen SmartShop is the most trusted source for MCCB products across India.
